DEEP C METER™ 3000 AD WITH EFG

DEEP C METER™ 3000 AD WITH EFG

$21,876.75 USD
$21,876.75 USD
Sale Sold out
Shipping calculated at checkout.

The premier ROV cathodic-protection survey system for work-class ROVs

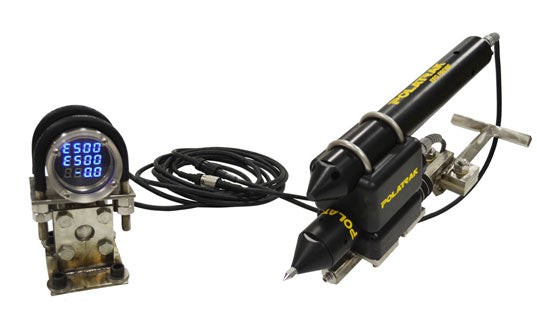

The Polatrak® Deep C Meter™ 3000 AD EFG combines the ROV-II™ and Polatrak® EFG readouts into a single new pressure housing that's smaller than before; New programmable, ultra-bright LED displays have brightness adjustments; The 3000 AD features RS-232 (standard ASCII string) digital data output, and the unit is ROV 24V DC-powered, so there's no need to open the pressure housing to change batteries.

Polatrak® Catalog More Info Operations Manual

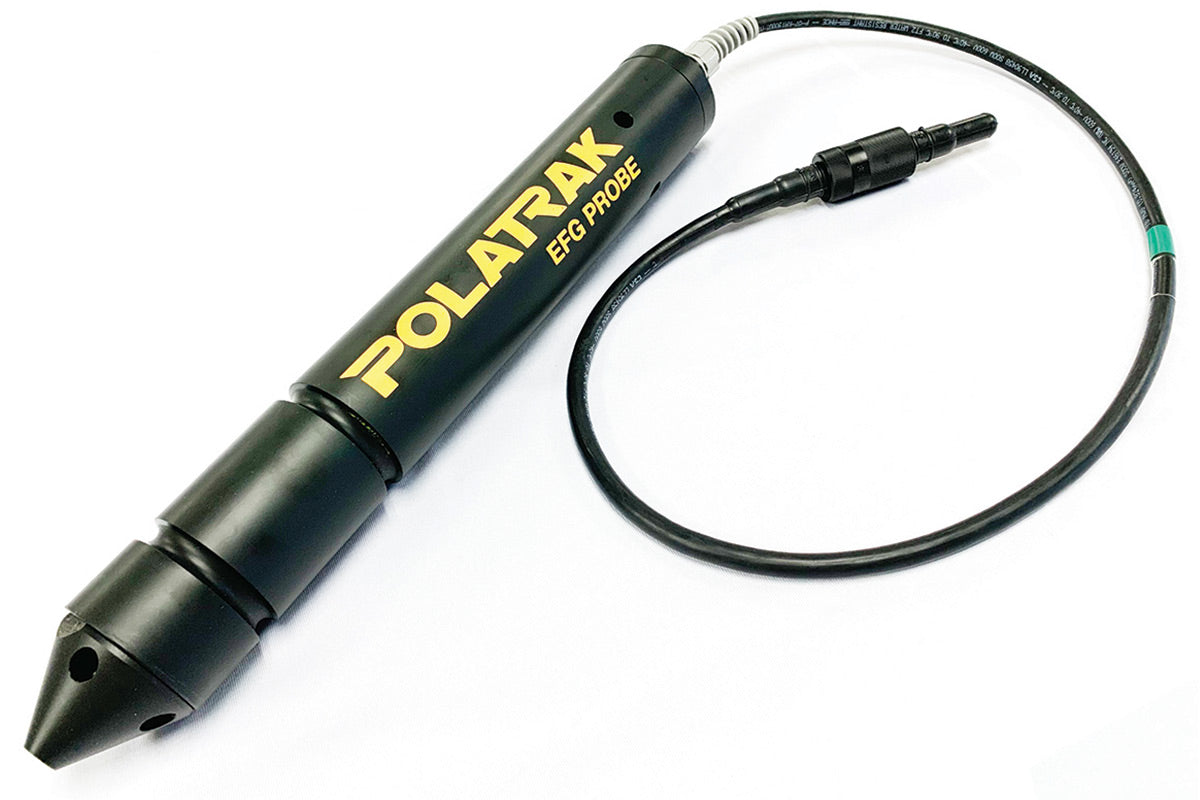

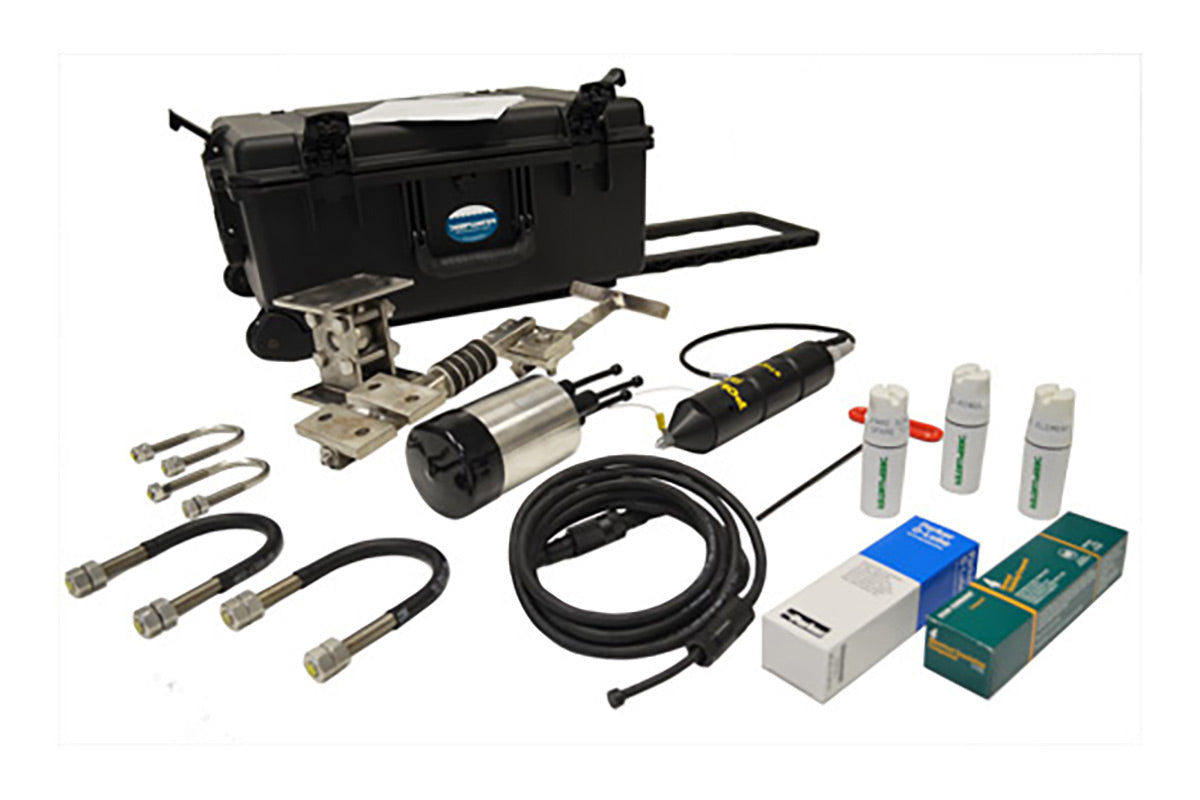

The Deep C Meter™ 3000 AD EFG kit includes the ROV II™ probe for taking stab readings and the new electric field gradient (EFG) probe for determining anode activity and measuring electric fields in seawater. Rated for operation to a depth of 10,000 feet (3000 m). Deepwater's survey software is also included, for collecting stab and remote electrode survey data.

Specs

Electrode elements

2 x Ag/AgCl or 2 x Cu/CuSO4 pluggable

Deployment

ADS or ROV

DISPLAYS

Programmable ultra-bright LED displays with brightness adjustments

OUTPUT

RS-232 (standard ASCII string) digital output

readouts

Combines ROV-II and Polatrak EFG probe readouts into a single, smaller stainless-steel pressure housing.

POWER

ROV 24V DC powered, which eliminates the need to open the pressure housing to change batteries.

DEPTH

3,000 m (10,000 feet)

PROBES

ROV-II for contact readings and EFG for non-contact assessment of anode activity.
