DC II™ 500 FT CABLE
DC II™ 500 FT CABLE

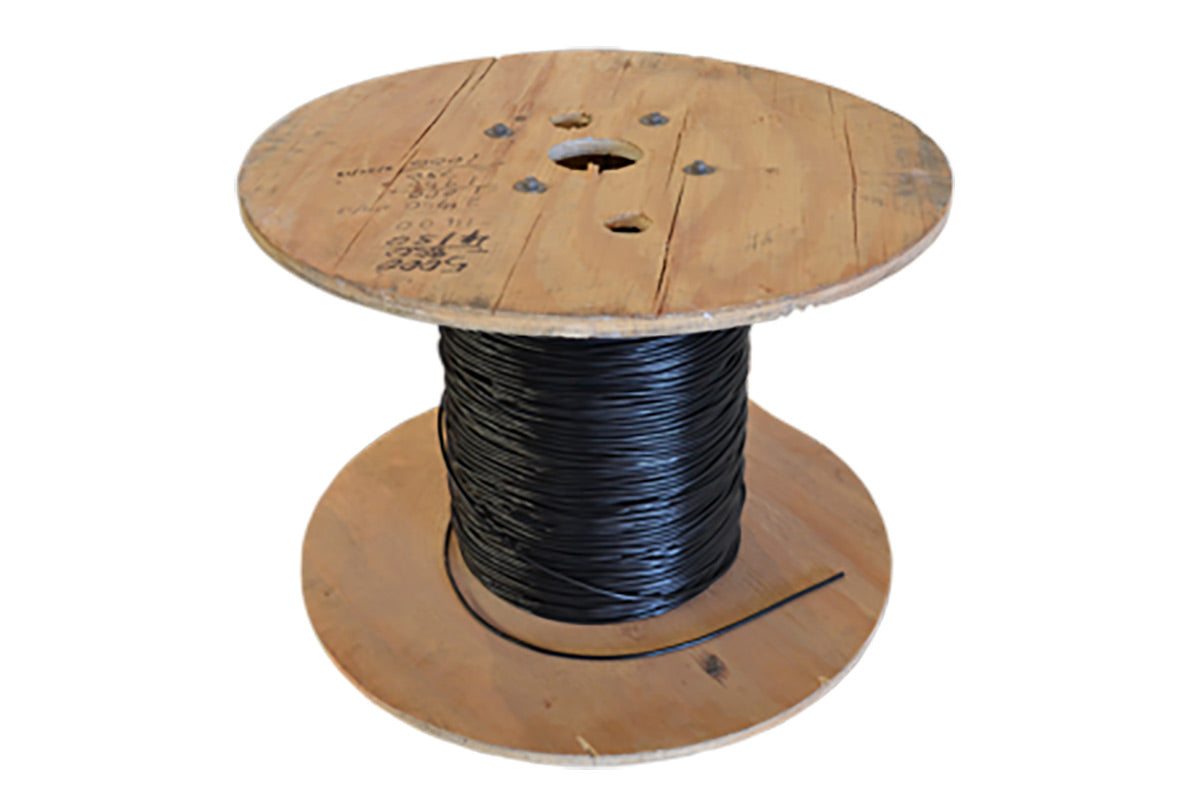

DC II™ with 500 feet of cable
The Polatrak DC II is the first and only twin-element portable reference electrode of its kind. The twin elements provide on-board calibration, which reduces the chances of topside survey inaccuracies. The DC II boasts a guaranteed accuracy of +/- 5 mV. Trips offshore are expensive, and faulty equipment should never be a reason for repeating a mobilization.

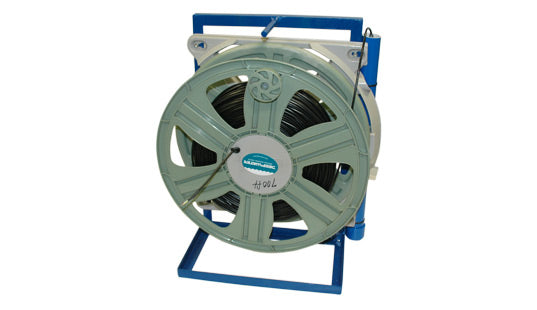

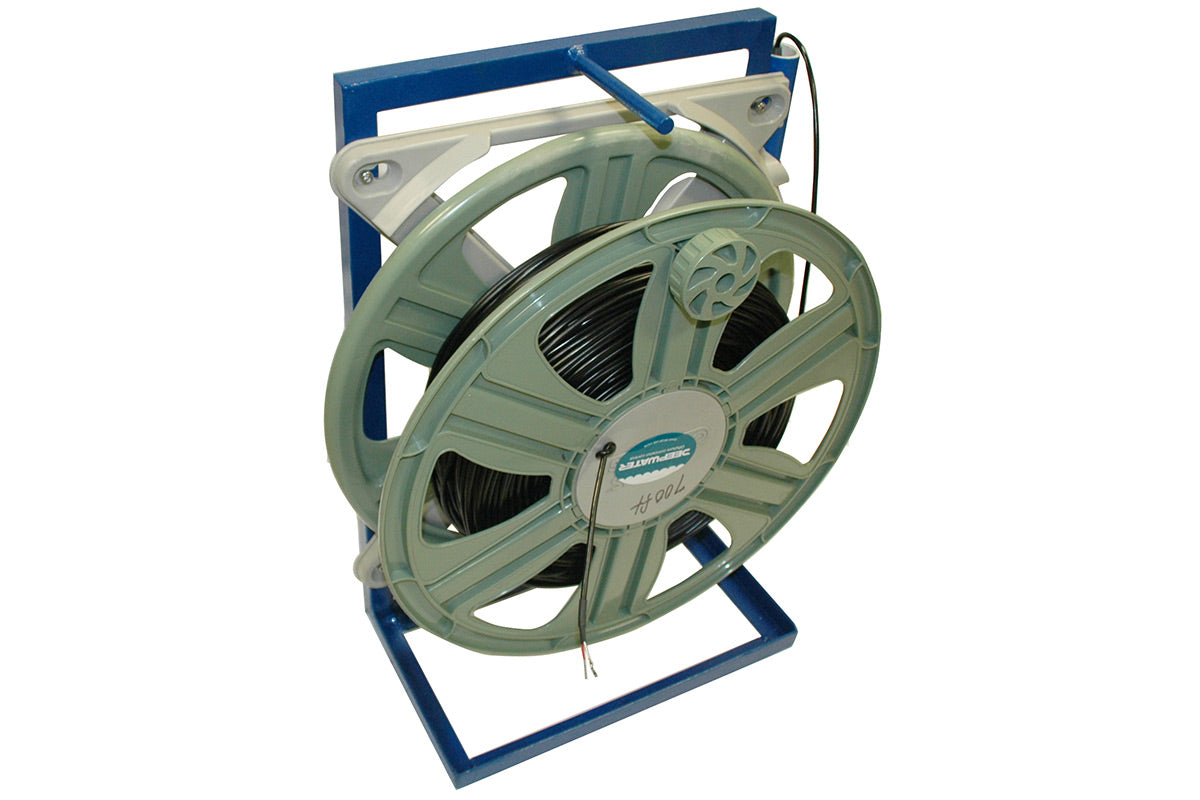

The rugged thermoplastic housing and tapered cone prevents snagging. The DC II shown is available with extra-long, three-conductor, 180” O.D. high-strength cable (up to 1,500 feet) and a high-capacity cable reel. The standard model comes with 250 feet (75 m) of cable.
Specs
Specs
Electrode elements2 x Ag/AgCl sealed |
DeploymentSurface |
ReadoutSurface voltmeter |
Depth500 ft. (up to 1,600 feet cable length available) |
Type of probeSurface deployed drop cell used as proximity probe |
Standard kit includesRuggedized weighted probe, 75 M (250 feet), seismic test cable, plastic deployment reel. |
