CP GUN™

CP GUN™

CPG0001

WHAT IT INCLUDESAdd to quote request

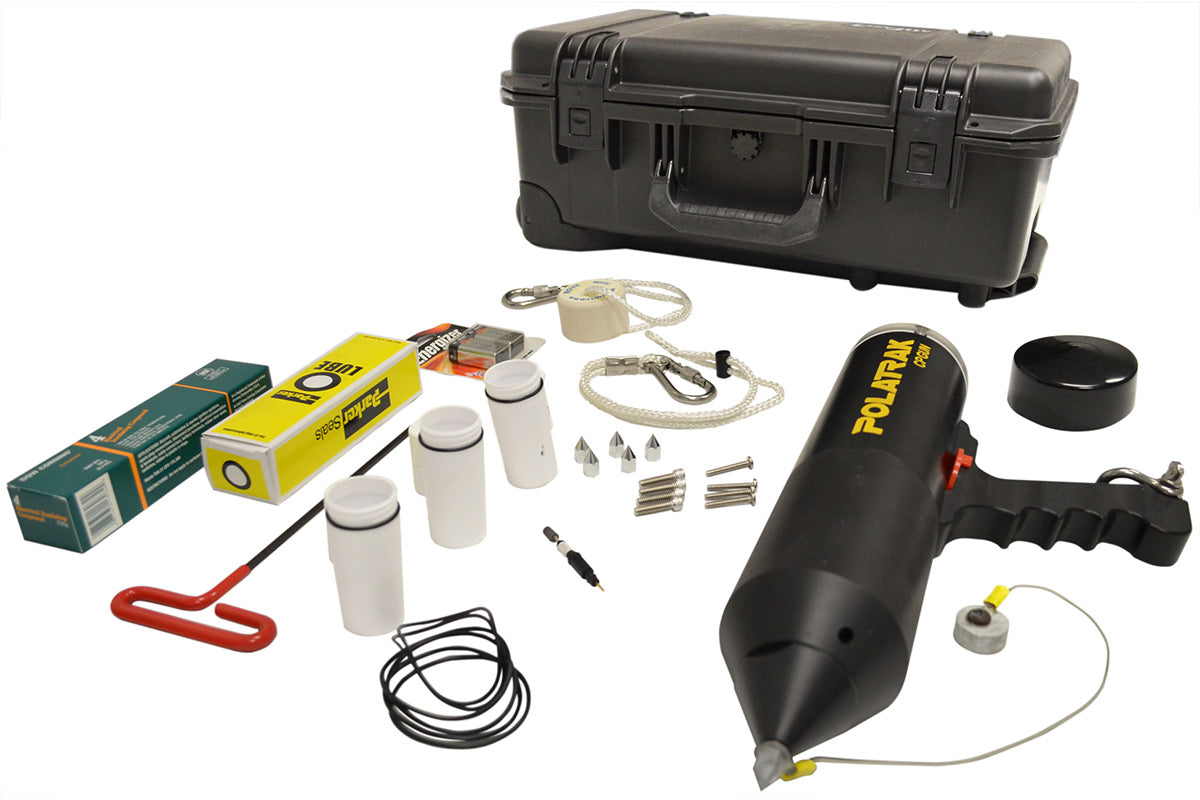

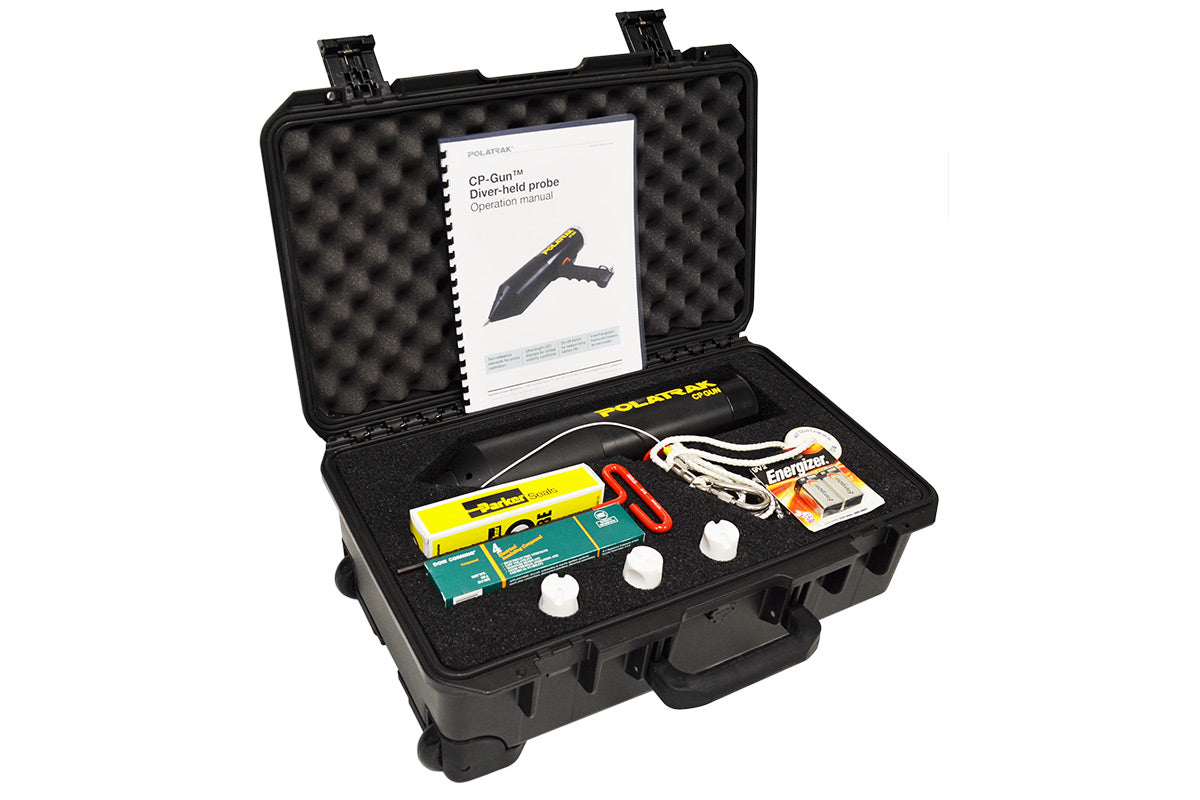

Calibration coupon, Contact tips, Tail assembly extension (whip), Ag/AgCI reference electrodes, Nose cone assembly, Tail assembly, Storm proof case

CP GUN™ Gallery

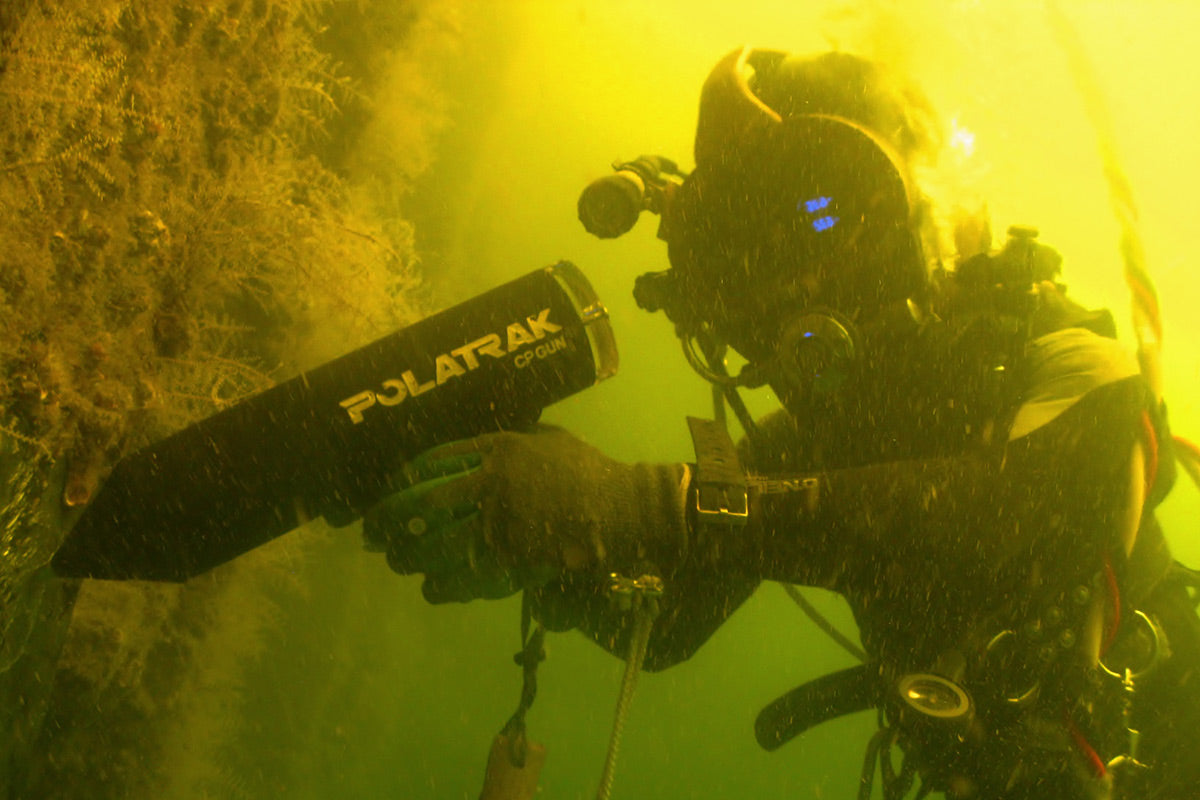

CP Gun in action 1

PRODUCT INFO

SPECS

DELIVERY

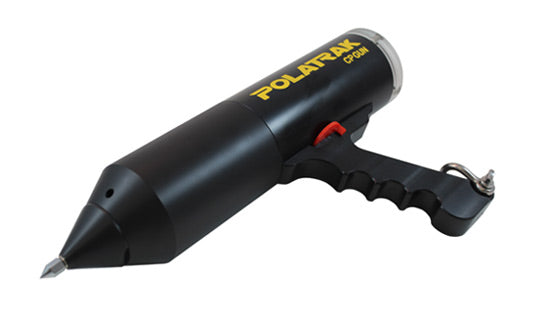

the most user-friendly diver-held cathodic-protection probe on the market.

The CP Gun outperforms all other available bathycorrometer-type devices in both accuracy and convenience. Longer battery life, interchangeable freshwater / seawater electrodes and ultra-bright LED displays (for limited-visibility conditions) make the CP Gun the most user-friendly diver-held CP probe. The dual-electrode elements and readouts coupled with a self-calibration capability make it the most accurate unit offered. Each probe kit comes with a full complement of spare parts, and replacements are readily available.

Polatrak® Catalog More Info Operations Manual

Electrode elements

2 x Ag/AgCl or 2 x Cu/CuSO4 pluggable

Deployment

Diver or ADS

Readout

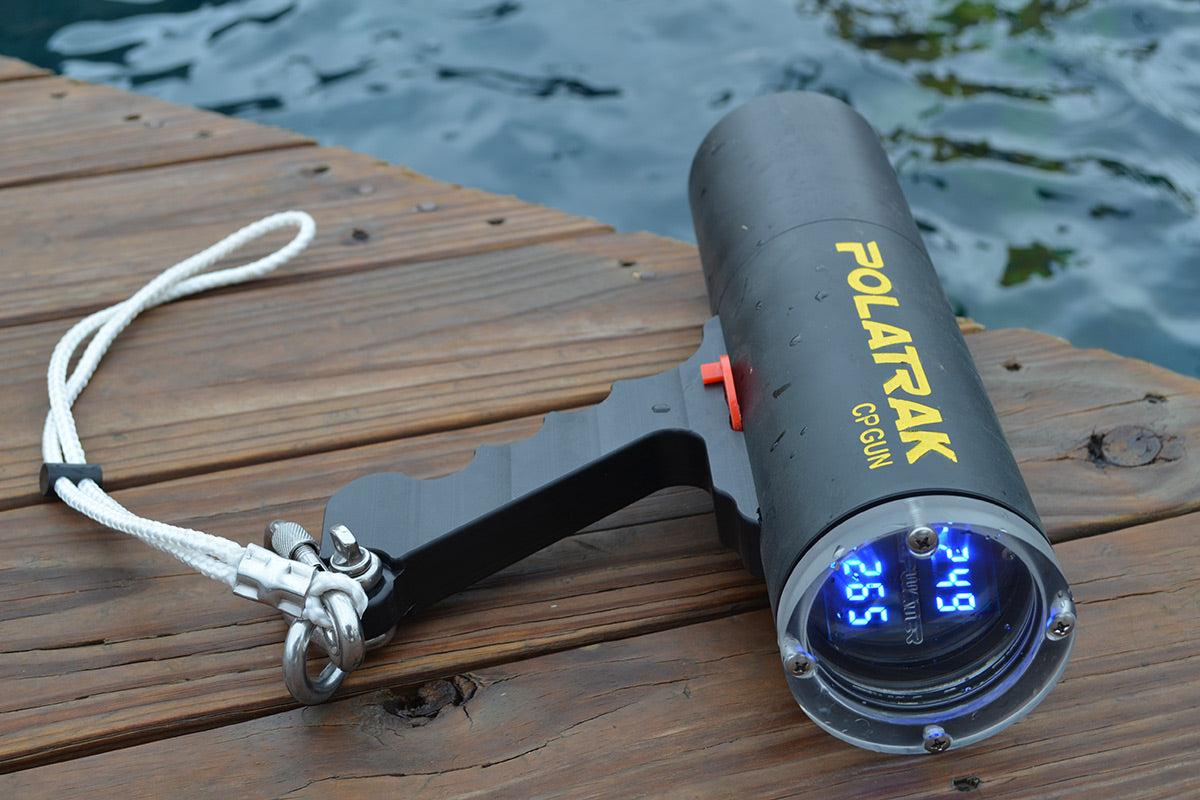

Integral dual ultra bright blue LED with manual switch

Depth

300 m (1000 ft.)

Type of probe

Self-contained contact CP measurement system

Tech Datasheet

Please select your delivery destination to see delivery services
and cost esimates.

Spares & Accessories

  • STANDARD SPARES KIT

    STANDARD SPARES KIT

    The standard spares kit contains items needed for maintenance of Polatrak's CP Gun and Deep C Meter.

  • NOSE CONE ASSEMBLY

    NOSE CONE ASSEMBLY

    This nose cone assembly fits both Polatrak's CP gun and ROV II corrosion probe.

  • Ag/AgCI ELEMENT

    Ag/AgCI ELEMENT

    Silver / silver chloride (Ag/AgCl) replacement element for use in offshore surveys. Fits Polatrak CP Gun and ROV II.

  • Cu/CuSO4 ELEMENT

    Cu/CuSO4 ELEMENT

    Copper/copper sulphate (Cu/CuSO4) replacement element for use in brackish water surveys.

  • ZINC CALIBRATION COUPON

    ZINC CALIBRATION COUPON

    Zinc calibration coupon for calibrating the probe and testing the reference electrodes.

  • CONTACT TIP

    CONTACT TIP

    Replacement contact tip for CP Gun and ROV II

  • CP GUN BULKHEAD CONNECT

    CP GUN BULKHEAD CONNECT

    Connection from electrodes to internal electronics in CP Gun.

  • LENS COVER

    LENS COVER

    Protective cover for CP Gun and Deep C Meter readout lenses.

  • 9-VOLT BATTERIES

    9-VOLT BATTERIES

    Replacement batteries for use in Polatrak's CP Gun and Deep C Meter.

  • O-RING LUBRICANT

    O-RING LUBRICANT

    O-Ring lubricant for reassembly of the readout lens in Deep C Meter and CP Gun.

  • INSULATING COMPOUND

    INSULATING COMPOUND

    Electrical insulating compound, used to seal electrical connections on Polatrak probes.

  • READOUT LENS

    READOUT LENS

    Replacement lens for LED readout used on CP Gun and Deep C Meter.

  • PRIMARY O-RING

    PRIMARY O-RING

    Primary O-rings for keeping the readout lens watertight on CP Guns and Deep C Meters.

  • BACKUP O-RING

    BACKUP O-RING

    Backup O-ring for watertight seal on CP Gun and Deep C Meter readout lenses.

  • ON / OFF SWITCH

    ON / OFF SWITCH

    Replacement on/off switch for Polatrak's CP Gun.

  • CP GUN FLOAT ASSEMBLY

    CP GUN FLOAT ASSEMBLY

    Find your CP Gun much more easily when it lands in the mud with this float assembly.

  • CP GUN HANDLE

    CP GUN HANDLE

    Replacement handle assembly for current-model CP Guns. The on/off switch is included.

  • ELECTRODE HARNESS

    ELECTRODE HARNESS

    Electrode harness for connecting reference electrodes and tip to LED readout.
