PROXIMITY PROBE

PROXIMITY PROBE

PRX0001

WHAT IT INCLUDESAdd to quote request

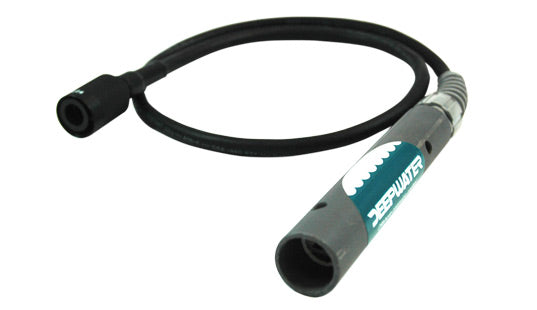

One Polatrak general proximity probe featuring twin Ag/AgCI elements with RM connector on a 1 m, (3 ft.) cable whip

PRODUCT INFO

SPECS

DELIVERY

Proximity probe for divers

The Polatrak proximity probe is designed specifically for diver use when conducting subsea platform services. Like all Polatrak probes, it has twin Ag/AgCl elements to allow on-line calibration. The standard SEA CON RM-3 connector allows it to be rapidly plugged into a diver’s inspection umbilical.

The proximity probe can only be used with a topside ground. For purpose surveys, divers can be equipped with a general-purpose electrode that is easily attached to their gear and wired up to the surface. Readings can be taken topside.The probe can be interfaced to small eyeball-type ROVs if needed.

More Info Operations Manual

Electrode elements

2 x Ag/AgCl sealed

Deployment

Diver

Readout

Surface voltmeter

Depth

300 m (1000 ft.)

Probe type

General proximity probe with RM connector on a 1 m, (3 ft.) cable whip

Please select your delivery destination to see delivery services
and cost esimates.

Spares & Accessories

  • CP GUN

    CP GUN

    The CP Gun is the most user-friendly diver-held cathodic-protection probe on the market.

  • ROV II PROBE

    ROV II PROBE

    The ROV II™ is the most dependable and widely-used tip contact probe on the market.

  • DC 2 DROP CELL

    DC 2 DROP CELL

    The standard DC II comes with 250 feet of cable, making it ideal for most topside cathodic-protection surveys. (Up to 1,500 feet available)

  • DC 2 500 FT CABLE

    DC 2 500 FT CABLE

    Polatrak's dual-electrode drop cell corrosion probe comes with a high-capacity reel and 500 feet of cable. (Up to 1,500 feet available)

  • ZINC CALIBRATION COUPON

    ZINC CALIBRATION COUPON

    Zinc calibration coupon for calibrating the probe and testing the reference electrodes.
